Introduction

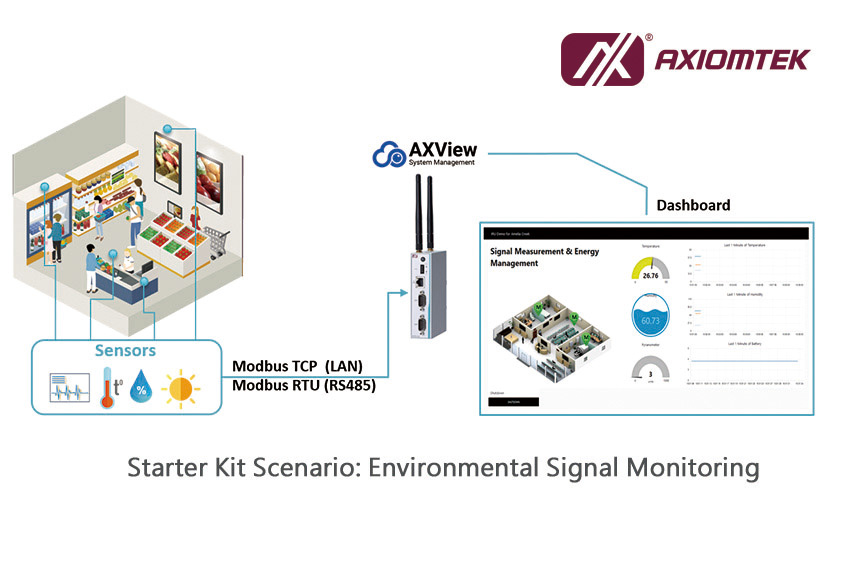

The AMS starter kit for Industrial IoT Modbus gateway solution is a plug-and-play a solution with integrating hardware platform and software service for IoT applications. The hardware platform, ICO100-839, is based on the Intel® Celeron® Processor N3350 and runs with Linux OS, Yocto. The AXView 3.0 (pre-alpha) is a web-based management suite with plug-in Modbus (RTU and TCP) protocol for helping users configure their settings and communication with Modbus device quickly and conveniently. The AXView 3.0 also combines browser-based programming editor, Node-RED, for designing data flow more friendly and easily. Thru AXView 3.0, user can do data processing and monitoring, event notifying, dashboard designing and uploading data to Microsoft Azure and AWS. Even user can build up their RESTful/web-socket service and message pushing with MQTT. There are sensors and a Modbus-supported analog-to-digital connector in the starter kit, and a simple hands-on lab is designed for the user to familiar with IIoT Gateway Solution quickly.
Features
l Easy-to-do device management for industrial IoT application
l Rich software interfaces reserve for system integration
l Graphic interface for easy programming
l Rugged design with high compatibility
AXView 3.0
l Device Setting: System control and configuration through web-based service for convenient operation
l On-line Monitoring: 24 x 7 online system monitoring, alarming trigger and visualized data in dashboard
l Protocol Plug-in: Communication support for Modbus, MQTT, REST, WebSocket, HTTP and TCP/UDP
l Node-RED Integrated: Provides a ‑low-based development tool for visual
l Programming without advantaged programming skill and makes it easy to process data and design processing l‑ows
l Dashboard Built-in: Built-in simple dashboard components for users to generate monitoring dashboards easily and quickly
Starter Kit Platform - ICO100-839
l Extreme cost-effective with fanless and cableless design
l Intel® Celeron® processor N3350 onboard
l 2 COM, 2 USB and GbE LAN
l 8-bit programmable DIO for IoT gateway applications
l Wide operating temperature range from -20°C to +70°C
l 12 to 24 VDC wide range power input
l OVP, UVP, OCP, RPP power protection design
l AXView 3.0 device management software for industrial IoT

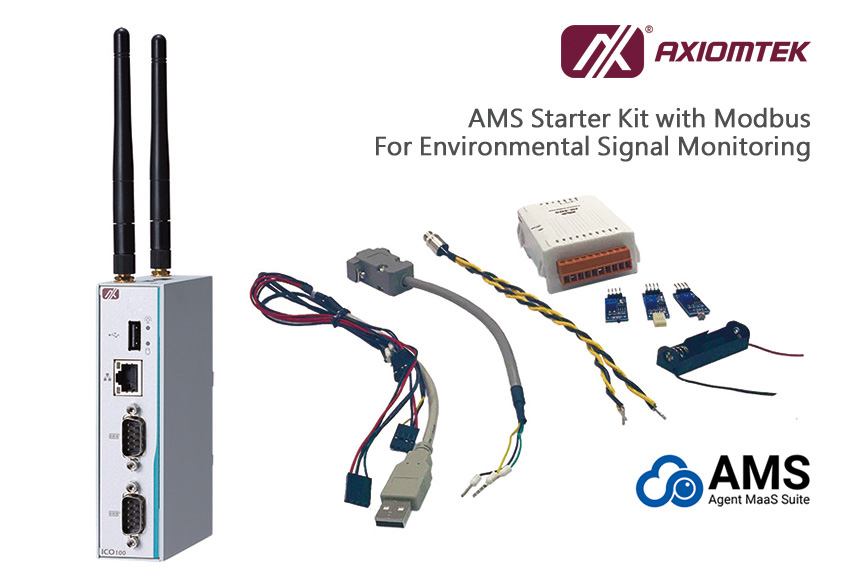

Packing List
1 x ICO100-839
1 x ADC (tM-AD5)
1 x Temperature sensor
1 x humidity sensor
1 x Sunlight sensor
1 x Battery case
1 x Sensor cable
1 x Data cable
1 x Y type power cable
1 x Power adapter and one power cord
1 x Slotted/fl‑at head screwdriver
