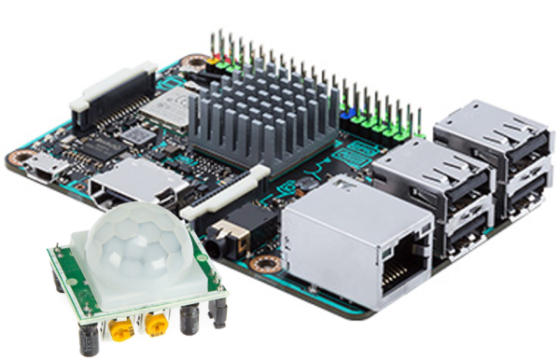

ASUS Tinker Board with PIR Motion Sensor Package supports the user for detecting a warm body like a human or animal passes by. And sent the detection telemetry and system telemetry to Azure IoT Hub for monitoring. One system supports up to 3 PIR motion sensors currently.

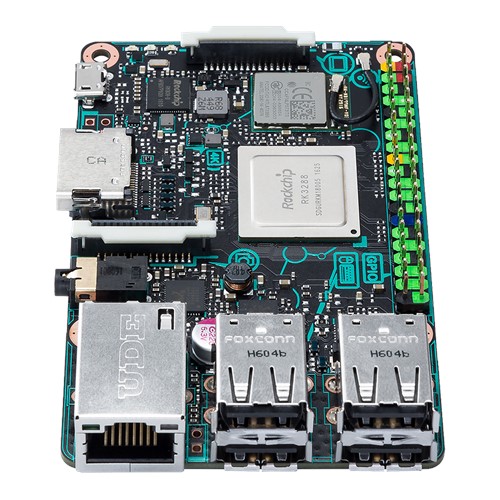

Tinker Board Introduction
Tinker Board is a Single Board Computer (SBC) in an ultra-small form factor that offers class-leading performance while leveraging outstanding mechanical compatibility. The Tinker Board offers makers, IoT enthusiasts, hobbyists, PC DIY enthusiasts and others a reliable and extremely capable platform for building and tinkering their ideas into reality.

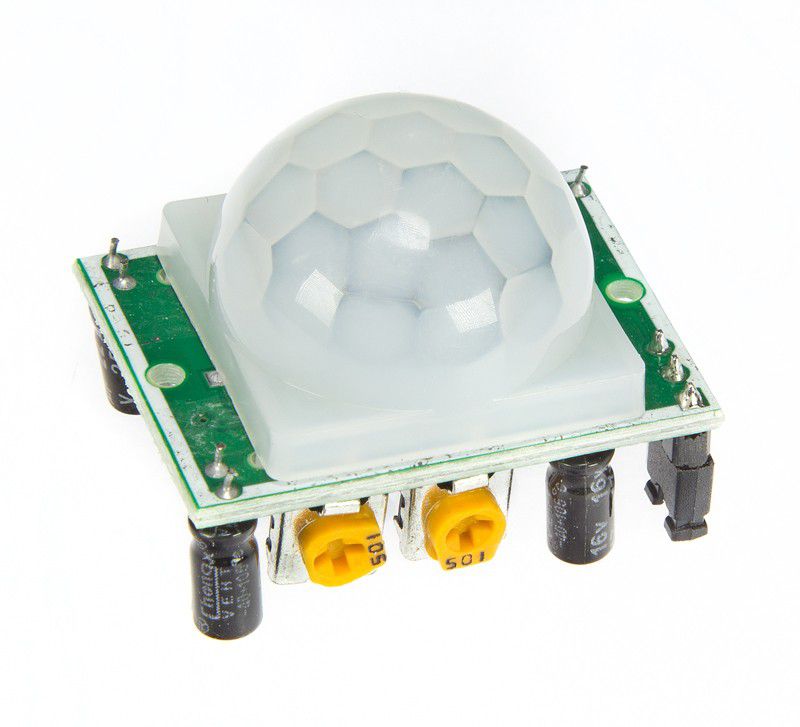

HC-SR501 PIR Motion Sensor Module
HC-SR501 auto-senses light for various applications (in house, basement, outdoor, warehouse, garage, etc,) for ventilator control, alarm, etc.
Features
- Automatic infrared detection (LHI778 probe design)
Output goes high when objects enter the sensing range, and automatically returns to low when object leaves - Optional photosensitive control
- Optional temperature compensation
- Trigger mode jumper
- L: Non-repeatable / delay mode: sensor goes low after the delay, regardless of the presence of the object.
- H: Repeatable: sensor stays high as long as any object is detected during the delay time.
- Wide operating voltage range
- Micro-amp power
- Output high signal: easy to achieve docking with the various types of circuit.
- Infrared technology (LHI778 probe design)
- high sensitivity | high reliability
- widely used especially for battery-powered products.
If you are interested in this platform, please feel free to contact us (mstech@synnex.com.tw).
