Solution Pack Overview

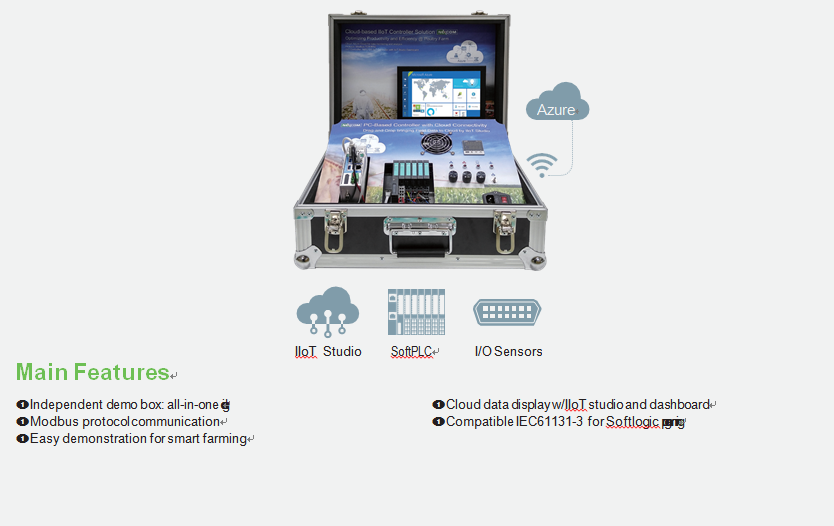

Trolley F6 smart farming solution pack is a training/demo kit for smart farming. It demonstrates how to utilize display, PC-based controller, Modbus TCP I/O device, and IIoT Studio dashboard to process data from OT level to IT level. This is an excellent solution pack which users can understand the basic I4.0 architecture, practice essential scenarios of smart farming, and gains comprehensive OT/IT knowledge for building a cloud-based project.
Solution Pack Spot Lights
Increase Farming Productivity
- Cloud based monitoring
- Optimize farming productivity and efficiency
- Self-control environment factors (ex.)
- Temperature, humidity and CO2
- Self-control fan for ventilation costs
From Field Data to Cloud
- SoftLogic P10 performance for I/O access
- IIoT Studio for easy drag & drop development
Modbus TCP/RTU I/O Support
- Compliant with world’s most common I/O device
- FAN control, fire alarm, water spreader
- On site monitoring (temperature, humidity, etc.)
Strong Controller Protection
- EMC heavy industry standard
- IEC61131-2 voltage drop test verfied

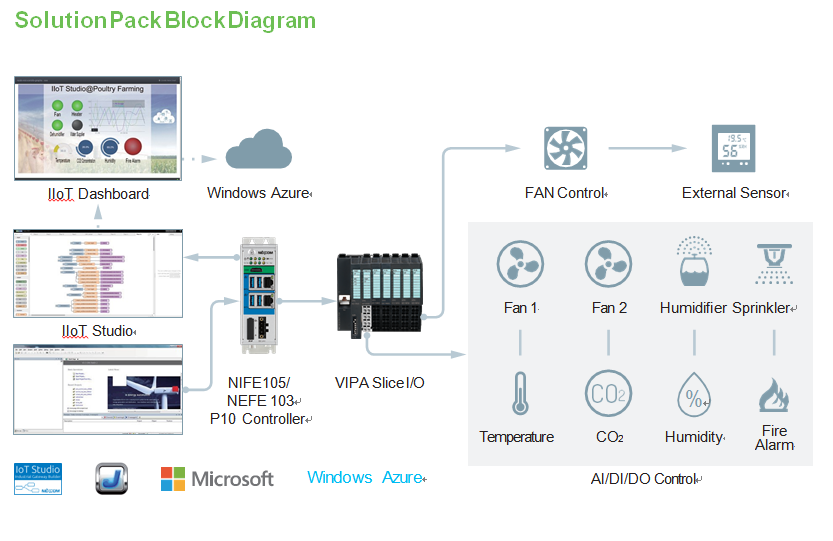

Solution Pack Configuration
NIFE103/NIFE105 - P10 Performance SoftPLC Controller
- Support multi-core, multi-tasking powered by Intel® Atom® dual core processor
- Compliant with industrial IEC61131-3 programming languages (LD/ FBD/SFC/IL/ST/CFC)
- Support up to 1.0ms cycle time and 512 I/O points
- Support PLC handler APIs and OPC-UA server for communication
- Support industrial Ethernet Fieldbus protocols (EtherCAT, EtherNet/IP, PROFINET)
- Support industrial GbE LAN, COM, and USB ports
eLite610 10” HMI w/ IIoT Studio
- Cost efficient 10” inch display with JMobile software built-In
- Support IIoT Studio dashboard
VIPA Modbus TCP Device I/O
- Connecting with DI/DO/AI/FAN peripheral devices
- Scenarios for farming simulation with 4 indicators, 1 switch, 1 fan, and 3 knobs
IIoT Studio V1.2 – Web Configuration Tool for Cloud
Application
- User friendly and Web-based configuration tool by click and drop actions
- Manage cyber physical system efficiently by NEXCOM hardware information nodes
- Connect to cloud securely with verified MQTT and AMQP nodes
- Support SQLite for database application and https for web service
- Support fieldbus (PROFINET, PROFIBUS, Ethernet/IP) configuration
- Support Modbus/RTU and Modbus/TCP master, OPC-UA client for field devices/controller data concentration
